4W1X | pdb_00004w1x

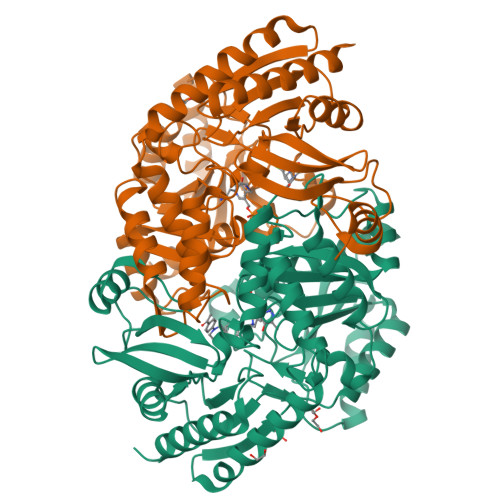

Crystal structure of 7,8-diaminopelargonic acid synthase (BioA) from Mycobacterium tuberculosis, complexed with 1-(4-(4-(3-chlorobenzoyl)piperazin-1-yl)phenyl)ethanone


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:
    0.227 (Depositor), 0.220 (DCC)
  • R-Value Work:
    0.198 (Depositor), 0.190 (DCC)
  • R-Value Observed:
    0.199 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted 3G9Click on this verticalbar to view detailsBest fitted PLPClick on this verticalbar to view details

This is version 2.1 of the entry. See complete history


Literature

Target-Based Identification of Whole-Cell Active Inhibitors of Biotin Biosynthesis in Mycobacterium tuberculosis.

Park, S.W.Casalena, D.E.Wilson, D.J.Dai, R.Nag, P.P.Liu, F.Boyce, J.P.Bittker, J.A.Schreiber, S.L.Finzel, B.C.Schnappinger, D.Aldrich, C.C.

(2015) Chem Biol 22: 76-86

  • DOI: https://doi.org/10.1016/j.chembiol.2014.11.012
  • Primary Citation of Related Structures:
    4W1V, 4W1W, 4W1X

  • PubMed Abstract:

    Biotin biosynthesis is essential for survival and persistence of Mycobacterium tuberculosis (Mtb) in vivo. The aminotransferase BioA, which catalyzes the antepenultimate step in the biotin pathway, has been established as a promising target due to its vulnerability to chemical inhibition. We performed high-throughput screening (HTS) employing a fluorescence displacement assay and identified a diverse set of potent inhibitors including many diversity-oriented synthesis (DOS) scaffolds. To efficiently select only hits targeting biotin biosynthesis, we then deployed a whole-cell counterscreen in biotin-free and biotin-containing medium against wild-type Mtb and in parallel with isogenic bioA Mtb strains that possess differential levels of BioA expression. This counterscreen proved crucial to filter out compounds whose whole-cell activity was off target as well as identify hits with weak, but measurable whole-cell activity in BioA-depleted strains. Several of the most promising hits were cocrystallized with BioA to provide a framework for future structure-based drug design efforts.


  • Organizational Affiliation

    Department of Microbiology and Immunology, Weill Cornell Medical College, New York, NY 10065, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Adenosylmethionine-8-amino-7-oxononanoate aminotransferase
A, B
457Mycobacterium tuberculosis CDC1551Mutation(s): 0
Gene Names: bioAMT1619
EC: 2.6.1.62
UniProt
Find proteins for P9WQ80 (Mycobacterium tuberculosis (strain CDC 1551 / Oshkosh))
Explore P9WQ80
Go to UniProtKB:  P9WQ80
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP9WQ80
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
3G9
Query on 3G9

Download Ideal Coordinates CCD File
G [auth B],
H [auth B]
1-{4-[4-(3-chlorobenzoyl)piperazin-1-yl]phenyl}ethanone
C19 H19 Cl N2 O2
RCHDWCNBGCYJNK-UHFFFAOYSA-N
PLP
Query on PLP

Download Ideal Coordinates CCD File
C [auth A],
J [auth B]
PYRIDOXAL-5'-PHOSPHATE
C8 H10 N O6 P
NGVDGCNFYWLIFO-UHFFFAOYSA-N
PEG
Query on PEG

Download Ideal Coordinates CCD File
E [auth A]DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
D [auth A],
F [auth A],
I [auth B]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free:  0.227 (Depositor), 0.220 (DCC)
  • R-Value Work:  0.198 (Depositor), 0.190 (DCC)
  • R-Value Observed: 0.199 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 62α = 90
b = 66β = 90
c = 204γ = 90
Software Package:
Software NamePurpose
d*TREKdata reduction
REFMACrefinement
PDB_EXTRACTdata extraction
d*TREKdata scaling
d*TREKdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted 3G9Click on this verticalbar to view detailsBest fitted PLPClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2015-02-04
    Type: Initial release
  • Version 2.0: 2017-11-22
    Changes: Atomic model, Database references, Derived calculations, Other, Refinement description, Source and taxonomy
  • Version 2.1: 2023-12-27
    Changes: Data collection, Database references, Derived calculations, Refinement description
