5YEC | pdb_00005yec

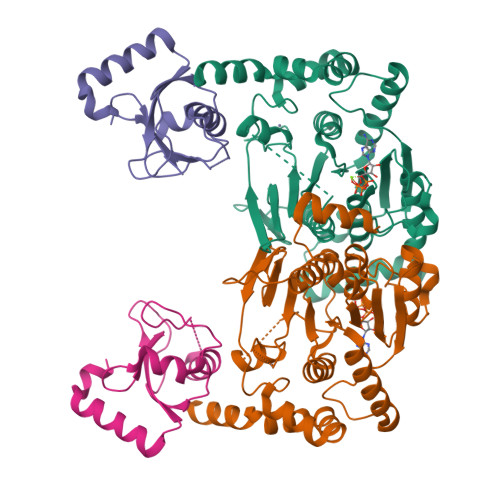

Crystal structure of Atg7CTD-Atg8-MgATP complex in form II


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.15 Å
  • R-Value Free:
    0.219 (Depositor), 0.220 (DCC)
  • R-Value Work:
    0.200 (Depositor), 0.200 (DCC)
  • R-Value Observed:
    0.202 (Depositor)

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted ATPClick on this verticalbar to view details

This is version 1.1 of the entry. See complete history


Literature

Atg7 Activates an Autophagy-Essential Ubiquitin-like Protein Atg8 through Multi-Step Recognition.

Yamaguchi, M.Satoo, K.Suzuki, H.Fujioka, Y.Ohsumi, Y.Inagaki, F.Noda, N.N.

(2018) J Mol Biology 430: 249-257

  • DOI: https://doi.org/10.1016/j.jmb.2017.12.002
  • Primary Citation of Related Structures:
    5YEC

  • PubMed Abstract:

    Atg8 is a unique ubiquitin-like protein that is covalently conjugated with a phosphatidylethanolamine through reactions similar to ubiquitination and plays essential roles in autophagy. Atg7 is the E1 enzyme for Atg8, and it activates the C-terminal Gly116 of Atg8 using ATP. Here, we report the crystal structure of Atg8 bound to the C-terminal domain of Atg7 in an unprecedented mode. Atg8 neither contacts with the central β-sheet nor binds to the catalytic site of Atg7, both of which were observed in previously reported Atg7-Atg8 structures. Instead, Atg8 binds to the C-terminal α-helix and crossover loop, thereby changing the autoinhibited conformation of the crossover loop observed in the free Atg7 structure into a short helix and a disordered loop. Mutational analyses suggested that this interaction mode is important for the activation reaction. We propose that Atg7 recognizes Atg8 through multiple steps, which would be necessary to induce a conformational change in Atg7 that is optimal for the activation reaction.


  • Organizational Affiliation

    Department of Structural Biology, Faculty of Advanced Life Science, Hokkaido University, Sapporo 060-0810, Japan.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Ubiquitin-like modifier-activating enzyme ATG7
A, C
340Saccharomyces cerevisiae S288CMutation(s): 0
Gene Names: ATG7APG7CVT2YHR171W
UniProt
Find proteins for P38862 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38862
Go to UniProtKB:  P38862
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38862
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Autophagy-related protein 8
B, D
119Saccharomyces cerevisiae S288CMutation(s): 1
Gene Names: ATG8APG8AUT7CVT5YBL078CYBL0732
UniProt
Find proteins for P38182 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38182
Go to UniProtKB:  P38182
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38182
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.15 Å
  • R-Value Free:  0.219 (Depositor), 0.220 (DCC)
  • R-Value Work:  0.200 (Depositor), 0.200 (DCC)
  • R-Value Observed: 0.202 (Depositor)
Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 138.995α = 90
b = 138.995β = 90
c = 134.368γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
iMOSFLMdata reduction
HKL-2000data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted ATPClick on this verticalbar to view details

Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2018-03-28
    Type: Initial release
  • Version 1.1: 2024-03-27
    Changes: Data collection, Database references, Derived calculations
