2PIF | pdb_00002pif

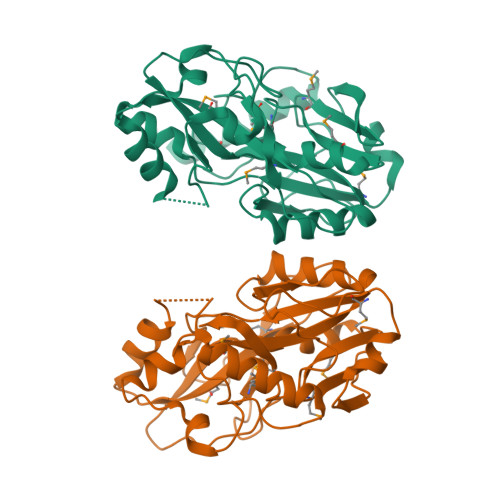

Crystal structure of UPF0317 protein PSPTO_5379 from Pseudomonas syringae pv. tomato. NorthEast Structural Genomics target PsR181

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free:
    0.272 (Depositor), 0.278 (DCC)
  • R-Value Work:
    0.241 (Depositor), 0.252 (DCC)
  • R-Value Observed:
    0.241 (Depositor)

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history.


Literature

Crystal structure of UPF0317 protein PSPTO_5379 from Pseudomonas syringae pv. tomato.

Seetharaman, J., Abashidze, M., Forouhar, F., Wang, D., Fang, Y., Cunningham, K., Ma, L.-C., Xia, R., Liu, J., Baran, M.C., Acton, T.B., Rost, B., Montelione, G.T., Hunt, J.F., Tong, L.

To be published.

Macromolecules
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
UPF0317 protein PSPTO_5379
A, B
276Pseudomonas syringae pv. tomato str. DC3000Mutation(s): 9
Gene Names: PSPTO_5379
EC: 4.2.1
UniProt
Find proteins for Q87UC6 (Pseudomonas syringae pv. tomato (strain ATCC BAA-871 / DC3000))
Explore Q87UC6
Go to UniProtKB:  Q87UC6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ87UC6
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
MSE
Query on MSE
A, B
L-PEPTIDE LINKINGC5 H11 N O2 SeMET
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free:  0.272 (Depositor), 0.278 (DCC)
  • R-Value Work:  0.241 (Depositor), 0.252 (DCC)
  • R-Value Observed: 0.241 (Depositor)
Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 66.31α = 90
b = 85.951β = 90
c = 93.941γ = 90
Software Package:
Software NamePurpose
CNSrefinement
ADSCdata collection
HKL-2000data reduction
HKL-2000data scaling
SOLVEphasing

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2007-05-01
    Type: Initial release
  • Version 1.1: 2008-05-01
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Source and taxonomy, Version format compliance
  • Version 1.3: 2018-01-24
    Changes: Database references, Structure summary
  • Version 1.4: 2024-11-20
    Changes: Data collection, Database references, Derived calculations, Structure summary
