3OR1 | pdb_00003or1

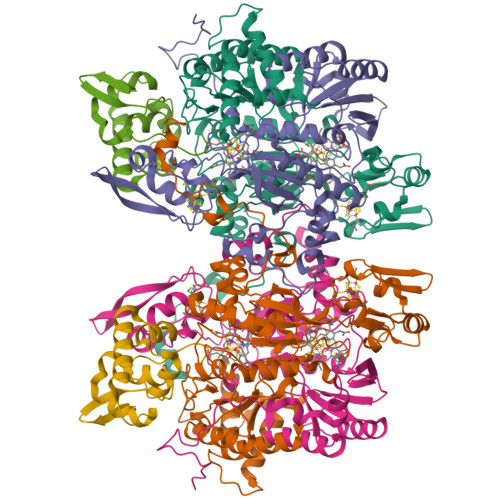

Crystal structure of dissimilatory sulfite reductase I (DsrI)

PDB DOI: https://doi.org/10.2210/pdb3OR1/pdb

Classification: OXIDOREDUCTASE
Organism(s): Megalodesulfovibrio gigas
Mutation(s): No

Deposited: 2010-09-06 Released: 2010-09-22
Deposition Author(s): Hsieh, Y.C., Liu, M.Y., Wang, V.C.C., Chiang, Y.L., Liu, E.H., Wu, W.G., Chan, S.I., Chen, C.J.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.76 Å
R-Value Free:
0.212 (Depositor), 0.200 (DCC)
R-Value Work:
0.193 (Depositor), 0.190 (DCC)
R-Value Observed:
0.193 (Depositor)

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 2.1 of the entry. See complete history.

Literature

Structure insights into the enzyme catalysis from comparison of three forms of dissimilatory sulfite reductase from Desulfovibrio gigas

Hsieh, Y.C., Liu, M.Y., Wang, V.C.C., Chiang, Y.L., Liu, E.H., Wu, W.G., Chan, S.I., Chen, C.J.

To be published.

Macromolecule Content

Total Structure Weight: 213.11 kDa
Atom Count: 15,467
Modelled Residue Count: 1,848
Deposited Residue Count: 1,856
Unique protein chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Sulfite reductase alpha	A, D	437	Megalodesulfovibrio gigas	Mutation(s): 0
UniProt
Find proteins for E2QR97 (Megalodesulfovibrio gigas) Explore E2QR97 Go to UniProtKB: E2QR97
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	E2QR97
Sequence Annotations Expand
Reference Sequence LOADING

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Sulfite reductase beta	B, E	386	Megalodesulfovibrio gigas	Mutation(s): 0
UniProt
Find proteins for E2QR96 (Megalodesulfovibrio gigas) Explore E2QR96 Go to UniProtKB: E2QR96
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	E2QR96
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Sulfite reductase gama	C, F	105	Megalodesulfovibrio gigas	Mutation(s): 0
UniProt
Find proteins for E2QR98 (Megalodesulfovibrio gigas) Explore E2QR98 Go to UniProtKB: E2QR98
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	E2QR98
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SRM Query on SRM Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain O [auth D] SDF format, chain R [auth E] SDF format, chain K [auth B] MOL2 format, chain H [auth A] MOL2 format, chain O [auth D] MOL2 format, chain R [auth E] MOL2 format, chain K [auth B] mmCIF format, chain H [auth A] mmCIF format, chain O [auth D] mmCIF format, chain R [auth E] mmCIF format, chain K [auth B]	H [auth A], K [auth B], O [auth D], R [auth E]	SIROHEME C₄₂ H₄₄ Fe N₄ O₁₆ DLKSSIHHLYNIKN-MWBYXLBFSA-L		Interactions Focus chain H [auth A] Focus chain K [auth B] Focus chain O [auth D] Focus chain R [auth E] Interactions & Density Focus chain H [auth A] Focus chain K [auth B] Focus chain O [auth D] Focus chain R [auth E]
SF4 Query on SF4 Download Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain P [auth D] SDF format, chain Q [auth D] SDF format, chain S [auth E] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain T [auth E] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain P [auth D] MOL2 format, chain Q [auth D] MOL2 format, chain S [auth E] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain T [auth E] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain P [auth D] mmCIF format, chain Q [auth D] mmCIF format, chain S [auth E] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain T [auth E]	I [auth A] J [auth A] L [auth B] M [auth B] P [auth D] I [auth A], J [auth A], L [auth B], M [auth B], P [auth D], Q [auth D], S [auth E], T [auth E]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain J [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain P [auth D] Focus chain Q [auth D] Focus chain S [auth E] Focus chain T [auth E] Interactions & Density Focus chain I [auth A] Focus chain J [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain P [auth D] Focus chain Q [auth D] Focus chain S [auth E] Focus chain T [auth E]
SO3 Query on SO3 Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain N [auth D] MOL2 format, chain G [auth A] MOL2 format, chain N [auth D] mmCIF format, chain G [auth A] mmCIF format, chain N [auth D]	G [auth A], N [auth D]	SULFITE ION O₃ S LSNNMFCWUKXFEE-UHFFFAOYSA-L		Interactions Focus chain G [auth A] Focus chain N [auth D] Interactions & Density Focus chain G [auth A] Focus chain N [auth D]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.76 Å
R-Value Free: 0.212 (Depositor), 0.200 (DCC)
R-Value Work: 0.193 (Depositor), 0.190 (DCC)
R-Value Observed: 0.193 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 114.721	α = 90
b = 60.478	β = 94.3
c = 132.915	γ = 90

Software Package:

Software Name	Purpose
SOLVE	phasing
CNS	refinement
HKL-2000	data reduction
HKL-2000	data scaling

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Released Date: 2010-09-22

Deposition Author(s):

Revision History (Full details and data files)

Version 1.0: 2010-09-22
Type: Initial release
Version 1.1: 2011-07-13
Changes: Version format compliance
Version 2.0: 2023-12-27
Changes: Data collection, Database references, Derived calculations, Non-polymer description, Structure summary
Version 2.1: 2024-10-30
Changes: Structure summary
