4PN9

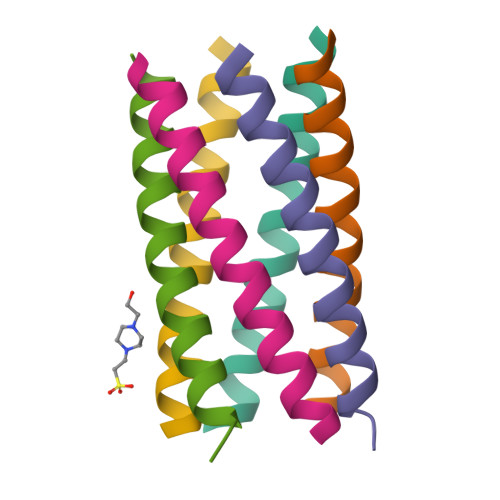

A de novo designed hexameric coiled coil CC-Hex2


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.258
  • R-Value Work: 0.206
  • R-Value Observed: 0.209

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 2.3 of the entry. See complete history


Literature

Computational design of water-soluble alpha-helical barrels.

Thomson, A.R.Wood, C.W.Burton, A.J.Bartlett, G.J.Sessions, R.B.Brady, R.L.Woolfson, D.N.

(2014) Science 346: 485-488

  • DOI: https://doi.org/10.1126/science.1257452
  • Primary Citation of Related Structures:
    4PN8, 4PN9, 4PNA, 4PNB, 4PND

  • PubMed Abstract:

    The design of protein sequences that fold into prescribed de novo structures is challenging. General solutions to this problem require geometric descriptions of protein folds and methods to fit sequences to these. The α-helical coiled coils present a promising class of protein for this and offer considerable scope for exploring hitherto unseen structures. For α-helical barrels, which have more than four helices and accessible central channels, many of the possible structures remain unobserved. Here, we combine geometrical considerations, knowledge-based scoring, and atomistic modeling to facilitate the design of new channel-containing α-helical barrels. X-ray crystal structures of the resulting designs match predicted in silico models. Furthermore, the observed channels are chemically defined and have diameters related to oligomer state, which present routes to design protein function.


  • Organizational Affiliation

    School of Chemistry, University of Bristol, Cantock's Close, Bristol, BS8 1TS, UK. [email protected] [email protected].


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
CC-Hex2
A, B, C, D, E
A, B, C, D, E, F
31synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
EPE
Query on EPE

Download Ideal Coordinates CCD File
G [auth E]4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
C8 H18 N2 O4 S
JKMHFZQWWAIEOD-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.258
  • R-Value Work: 0.206
  • R-Value Observed: 0.209
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 59.32α = 90
b = 125.53β = 90
c = 58.15γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
iMOSFLMdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European Research CouncilUnited Kingdom340764
Engineering and Physical Sciences Research CouncilUnited KingdomEP/J001430/1
Biotechnology and Biological Sciences Research CouncilUnited KingdomBB/J008990/1

Revision History  (Full details and data files)

  • Version 1.0: 2014-10-22
    Type: Initial release
  • Version 1.1: 2014-11-05
    Changes: Database references
  • Version 2.0: 2017-08-30
    Changes: Advisory, Atomic model, Author supporting evidence, Derived calculations
  • Version 2.1: 2017-09-13
    Changes: Author supporting evidence
  • Version 2.2: 2024-05-01
    Changes: Data collection, Database references, Refinement description
  • Version 2.3: 2024-11-06
    Changes: Structure summary
